Product Specification
Clik for customSize
Click to change mm to inch

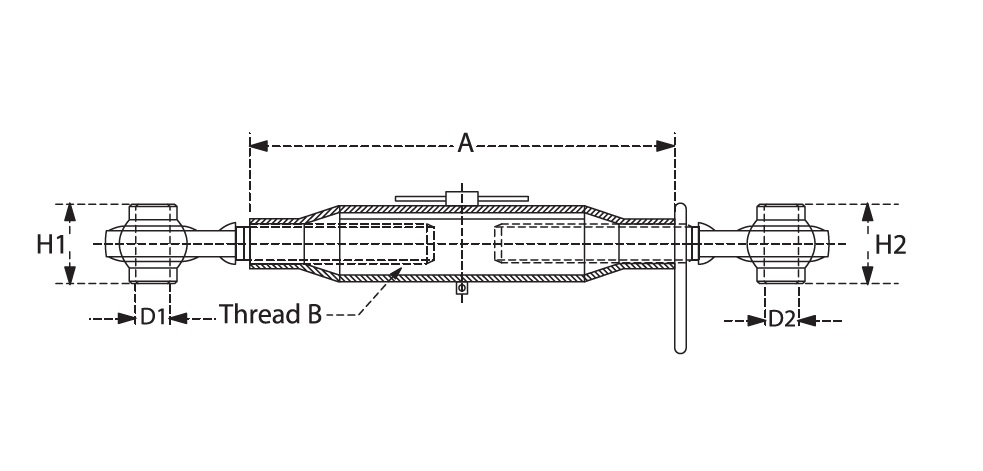

| CODE | A | B | LH BALL ID/HT (D1/H1) | RH BALL ID/HT (D1/H1) | |
|---|---|---|---|---|---|
| STLAU0201 | 350 | M24x3 | 25.4/51 | 25.4/51 | Enquiry |
| STLAU0202 | 400 | M24x2 | 25.4/51 | 25.4/44 | Enquiry |
| STLAU0203 | 430 | M24x2 | 25.4/51 | 19.0/44 | Enquiry |
| STLAU0204 | 430 | M24x3 | 25.4/44 | 25.4/44 | Enquiry |
| STLAU0205 | 470 | M30x3.5 | 25.4/51 | 25.4/51 | Enquiry |
| STLAU0206 | 470 | M36x3 | 25.4/44 (80) | 25.4/44 (80) | Enquiry |
| STLAU0207 | 470 | M36x3 | 32/51 (96) | 25.4/51 (80) | Enquiry |
