Product Specification
Clik for customSize
Click to change mm to inch

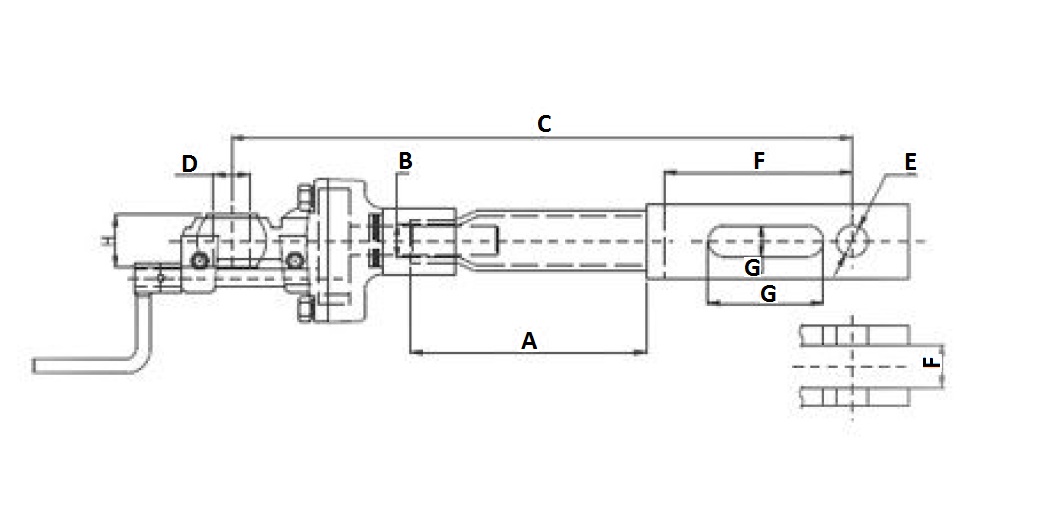

| CODE | PIPE (A) MM | THREAD (B | USABLE (C) | BALL.ID/HT (D/H) | U.HOLE.D. (E) | U.SIZE (F) | U.SLOT (G) | ROTATING LEVER | |
|---|---|---|---|---|---|---|---|---|---|
| ST-KALA 80450979 | 270 | M30X3.5RH | 550 | 28.4/45 | 25.4 | 37X100 | N.A. | WITH | Enquiry |
| ST-KALA 84450009 | 270 | M30X3.5RH | 550 | 28.4/45 | 25.4 | 37X100 | N.A. | W/O | Enquiry |
| ST-KALA 89450979 | 200 | M36X3.0 RH | 520 | 28.4/45 | 25.4 | 33X172 | 26X95 | WITH | Enquiry |
| ST-KALA 87450009 | 200 | M36X3.0 RH | 520 | 28.4/45 | 25.4 | 33X172 | 26X95 | W/O | Enquiry |
